DJI Zenmuse L3: The Features That Actually Move The Needle

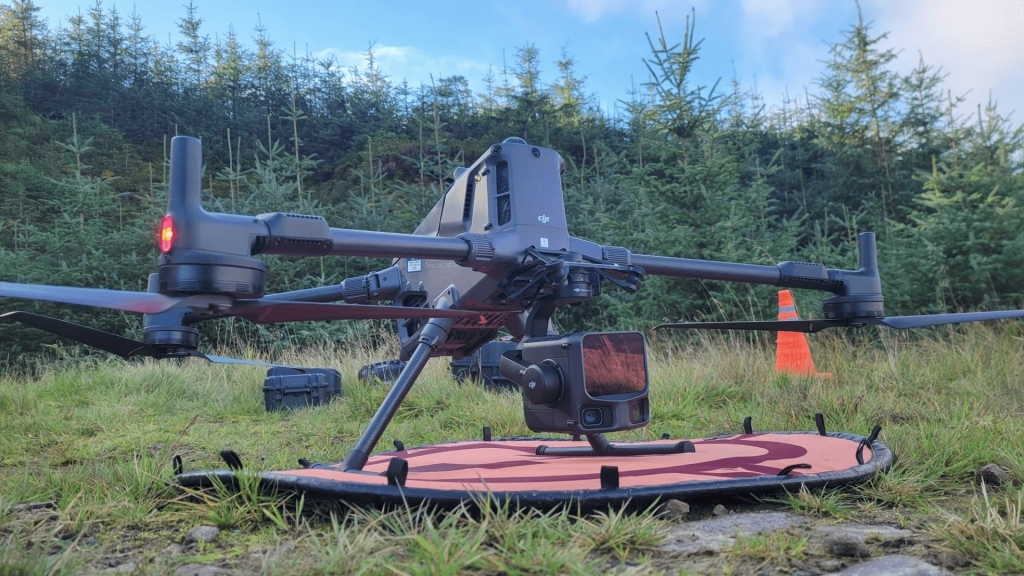

DJI Zenmuse L3. Photo credit: DJI
DroneXL Exclusive: Up To $40 Off Skyrover X1, S1 Drones With Amazon Prime Delivery
The Zenmuse L3 isn’t just another LiDAR payload bolted to a drone. It looks and feels like a single, purpose-built instrument, with attention paid to its smallest details. Once it’s in the air, that design isn’t just cosmetic.
The LiDAR, RGB mapping camera, and mapping tools all work together at the same time, feeding you depth data, colorized point clouds, and high-res imagery in one pass. For surveyors and inspectors, that “everything at once” workflow almost feels unfair compared to older setups where you had to fly the same job two or three times to get a fraction of the same result.
LiDAR works by firing tens of thousands to millions of laser pulses every second and measuring how long each one takes to bounce back to the sensor. Those time-of-flight measurements are converted into precise distances, then plotted as 3D coordinates to build a detailed point cloud of the scene.
The LiDAR Sensor
The range story is just a single number on paper. The L3 lets you select pulse rates from 100 kHz to 2MHz, with up to 16 returns, and multiple scan modes. Basically, it’s a really good all-in-one LiDAR payload that you can throw on one of the most advanced UAV airframes currently in existence – the DJI Matrice 400.
Photo Credits | Heliguy.com
Because this is a DJI product, you can expect the performance and technology that come associated with the brand. With the L3, color is a first-class feature, not an afterthought.
Dual 100 MP Cameras
The dual 100 MP cameras operate in tandem with the LiDAR sensor, allowing colorization and point cloud generation to co-occur from the same source. When viewing the live feed from the two onboard cameras, it allows for a much wider field of view.
Photo credit: DJI Enterprise
Daily operations details matter too. The L3 is IP54 rated, operating from −20 °C to 50 °C ( -4°F to 122°F), and draws 64 W typical with a maximum of 100 W. It mounts via a single-port connector on the DJI Matrice 400 (M400).
What if I want to upgrade?
If your fleet is already standardized on the M400 platform, integration is straightforward. If you are still on the M210, M300 or M350, the L3 is not cross-compatible, so it becomes a platform decision more than a sensor swap.
What equipment is needed to utilize the L3?
Capture is in DJI Pilot 2 on the RC Plus 2 Enterprise, then processing runs in DJI Terra. Having used all three, I can safely say DJI’s ecosystem is far more seamless than any other drone manufacturer. My main complaint would be the cost. ~$8,000 is objectively steep for a software license.
With v5.1, Terra adds free L3 LiDAR reconstruction, cluster reconstruction for large datasets, and practical editing tools like trajectory trimming and ROI splitting. That means a complete plan-to-deliverable pipeline inside DJI’s ecosystem without an extra L3 processing license.
Quick comparison for context. L2 runs a 905 nm laser and is rated for 250 m at 10% reflectivity and 450 m at 50%, plus a single RGB mapping camera.
Price checks in the U.S. show the payload listed around 17,400 dollars at multiple enterprise dealers, with early shipments running on preorder timelines. If you’re in the U.S., I would recommend checking with online retailers directly and asking about inventory.
DroneXL’s Take
I saw the release of the L1 roughly five years ago, and I immediately thought “yep, we’re in the future!”.
Now, the Zenmuse L3 feels less like a simple upgrade and more like a glimpse at where airborne LiDAR is going. You get long-range, dense point clouds, and a shockingly clean workflow, all wrapped in a payload that actually looks as refined as it performs.
The fact that every camera onboard can run at the same time turns each flight into a full data capture, not just a single-purpose mission.
The L3 shows how far things have come in a short amount of time. For anyone mapping, inspecting, or modeling across the globe, it is one of those rare pieces of hardware that feels both cutting edge and immediately practical.
If you had to choose between the L3 and a competitor, which would you pick? Let me know down below!
